DiY: most tiny MP3 player with ATmega8 VS1011a and Nokia6100 Display

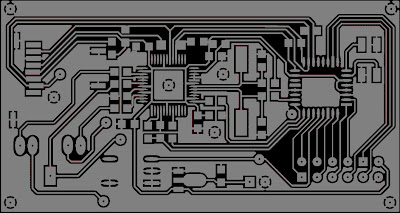

This is a complete mobile MP3 player and first mp3-player with ATmega8 and Nokia 6100 color display.

An demo firmware and gerber file for board will be available soon.

This player has capability to play wav and mp3 files and view BMP files on 8 or 24 bits/pixel from a MicroSD card with maximum capacity 2GB, the format of the SD is FAT32 with clusters from 512 Bytes to 32768Bytes, the filesystem has no limits in number of directories and files.
For future i want to adapting the SD driver for SDHC because the filesystem is designed to use all capacity of fat32 ( 2TB in 512Bytes/sector)

List of features:
Play Wav and MP3 Files because the VS1011a only this files is capable to decode( but for future in this project i want to include the VS1053 chip to play more file formats.
View Bitmap files on 8Bit and 24 bit/pixel

This project is in asm language and my 100% own libraries









For the moment the project has 5172Bytes of Flash , 663Bytes of Ram and 0Bytes of EEprom
Several variants of this player can be found for purchase here.

I work to another MP3 player:
New MP3 Player Link

9 comments:

Jeremy said...

This is a very cool project, I think the biggest downfall of most cheep/small mp3 players is the poor UI, it would be awesome to have an open-source player that I could change on a whim.

12oclocker said...

Nice job on the board etch, I spent years doing it before I could get good hairline trace sized etches.

Morgoth said...

After i finish this mp3 player, i try to make one mp3 more small but no display.

Sorry but this project will not be open source but will have a config file stored in internal EEPROM memory which will choose a skin

Anonymous said...

The yampp players, http://www.yampp.com are all open-source.
See the discussion forum for info on the cool yamppPod player.

Morgoth said...

This project will be open source but not now because is not complete.
This mp3-player will have and one external 64KB eeprom for skin, this eeprom in future will be updated with skin image from SD card, and if is space in flash will be contain one flash/ram user zone updated from SD card.
